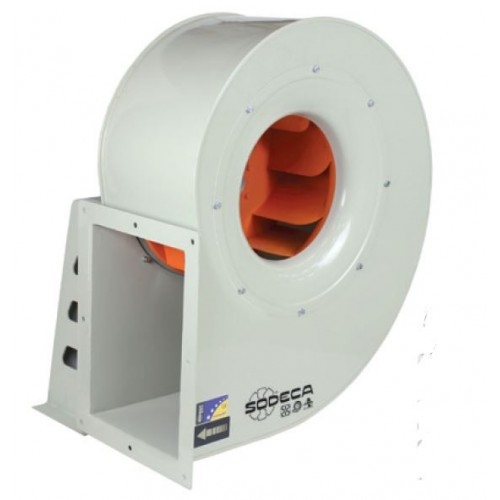

Medium pressure, single inlet, centrifugal fans with sheet steel casing and straight blade impeller for carrying dust and solid material.

Supply: 230/400V 50Hz

Number of motor poles: 4

Motor power (HP): 2

Three phase motor

Speed (rpm): 1450

I max.  (A): 5.48

Power (kW): 1.50

Air flow max. (m³/h): 8500

Sound (db(A)): 81

Weight (Kg):  106

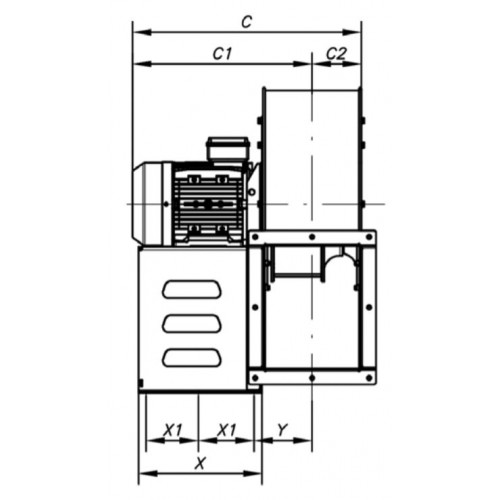

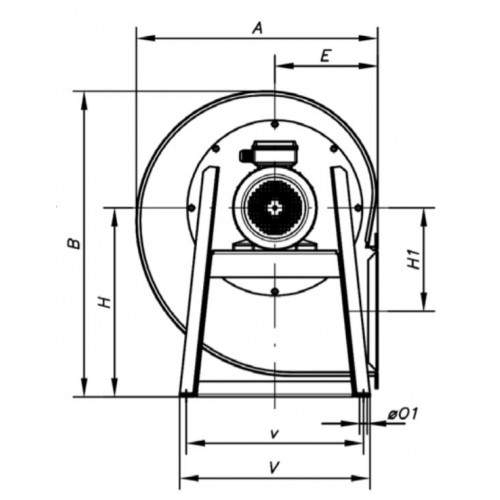

Dimensions (mm):

A = 797

B = 990

C = 590

H1 = 313

FEATURES:

Fan:

• Sheet steel casing.

• Impeller with reaction blades made of sheet steel.

• Maximum temperature of air to be carried: -20 °C +120 °C.

Motor:

• IE3 efficiency motors for powers equal to or greater than 0.75 kW except single-phase, 2-speed and 8-pole.

• Class F motors with ball bearings and IP55 protection.

• Three-phase 230/400 V ‐ 50 Hz
