Suction diameter (mm): 650

Blowing section (mm): 1000 x 710

Power (kW): 55 kW

Supply (V): 400

Speed (rpm): 1400

Max. air flow (m³/h): 65280

Max. pressure (Pa): 1716

Working point: 65280m3/h @ 2138Pa

Noise level db(A): 87

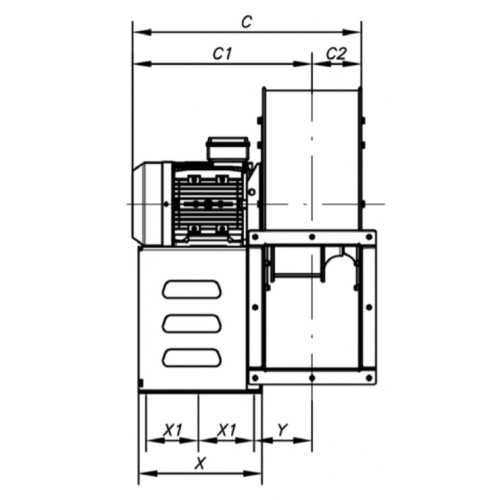

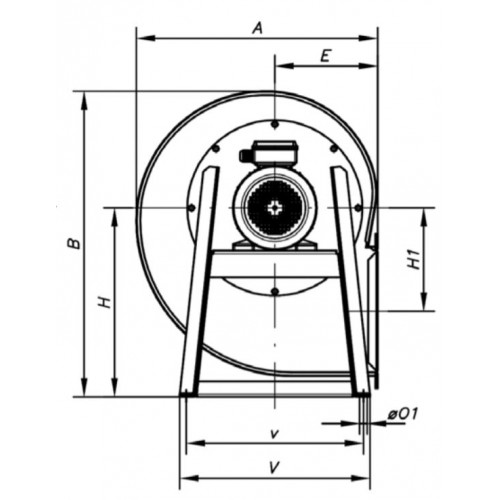

Overall dimensions (mm): 1870x1580x1705

Weight (kg): 860

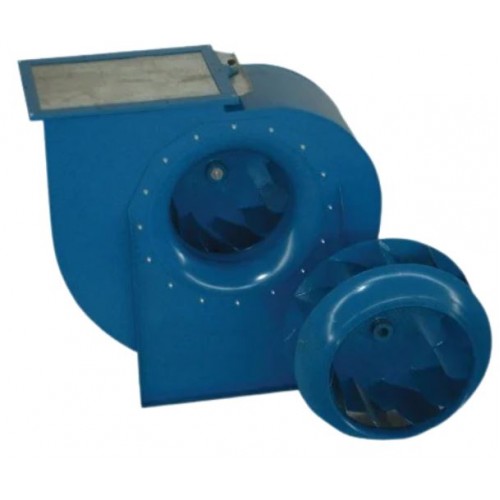

GGE centrifugal fans are suitable for clean or slightly dusty air.

Often used within air-conditioning installations, for fume extraction resulting from welding, for painting booths, cooling installations, for plastic materials and in general in all applications where low and medium pressure air must be directed.

Centrifugal fans are provided for transporting air with a maximum temperature of 80 ºC.
