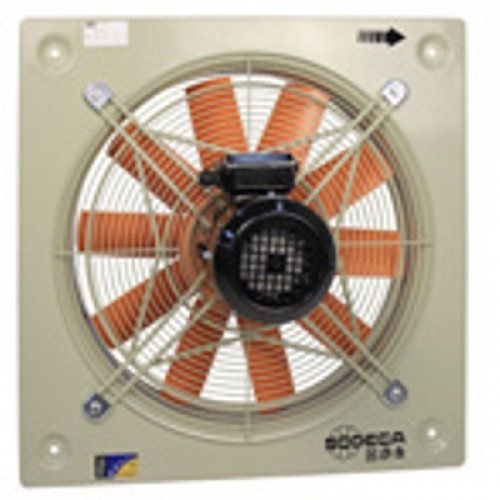

HC-50-4T/H Axial wall fan
Diameter (mm): 500
Motor power (W): 550
Number of pole: 4P
Supply (V): 400
Speed (rpm): 1380
Max flow (m3/h): 10200
Max pressure (Pa): 230
Max admissible current (A): 1.69
Working point: 7000 m3/h @ 98 Pa
Weight (kg): 18

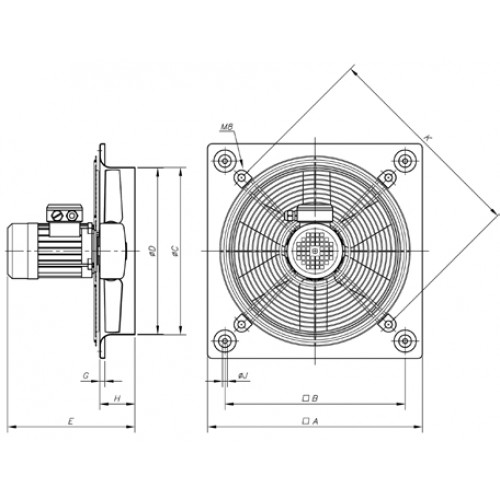

Dimensions (mm):
A= 665
B= 562
C= 516.5
D= 514
E= 351
G= 11
H= 115
J= 10.5
K= 640
HC-50-4T/H Axial wall fan
- Cod Produs: HC-50-4T/H
- Disponibilitate: In Stoc
-
2,166.36ron
- Fara TVA: 1,790.38ron
