*Price quotation uppon request!*

Technical description:

• Impeller diameter 40mm
• Airflow direction of 180º possible
• Mounting position horizontal or vertical with motor at the bottom
• Permissible ambient temperature 0-60ºC
• Insulation class B, class F or H on request
• motor right/motor left !

Nominal data:

• Voltage: 24V
• Air flow:130m3/h
• Max. pressure: 15 Pa
• Power: 7 W
• Speed: 2200 rpm
• Mass: 0.7 kg

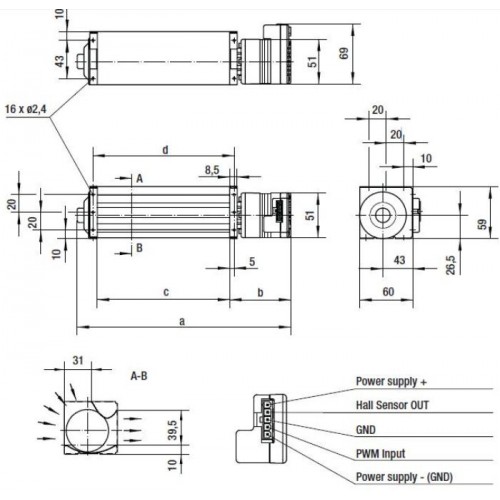

• Dimensions mm: a-393 b-71 c-300 d-310
