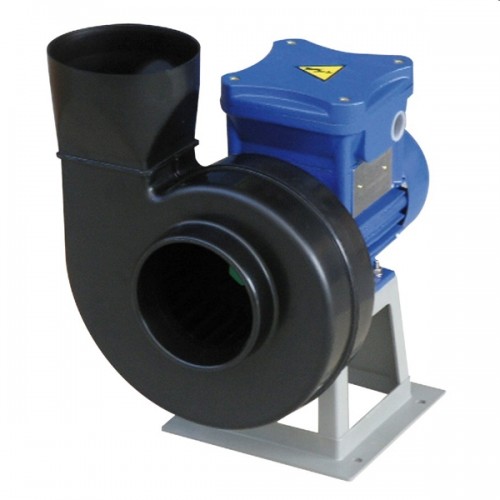

Single Inlet Centrifugal Fan CMPT/2-14 II2GEEXDIIBT4
Motor power (W): 180
Number of pole: 2P
Supply (V): 230/400
Speed (rpm): 1450
Max flow (m3/h): 564
Max pressure (Pa): 305
Working point: 561 m3/h @ 302 Pa

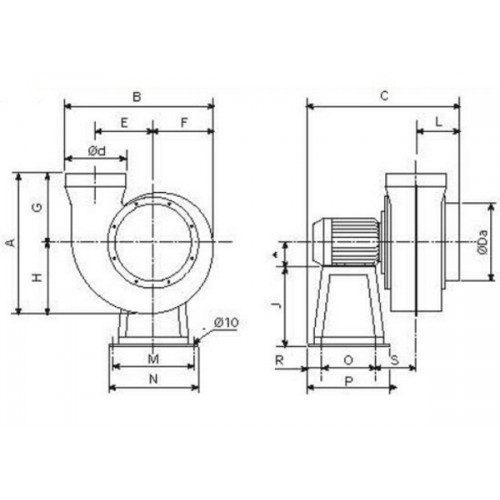

Dimensions (mm):
A = 325
B = 284
C = 317
Da = 125
E = 103
F = 118
G = 189
H = 136
J = 130
L = 72
M = 175
N = 200
O = 130
P = 200
R = 35
S = 80
d = 125
Weight = 27.00 kg
Single Inlet Centrifugal Fan CMPT/2-14 II2GEEXDIIBT4
- Cod Produs: CMPT/2-14 II2GEEXDIIBT4
- Disponibilitate: In Stoc
-
16,588.70ron
- Fara TVA: 13,709.67ron
