Single Inlet Centrifugal Fan CBS-10/6-0.75kW/4
Motor power (W): 750
Number of pole: 4P
Supply (V): 230/400-3
Speed (rpm): 1550
Max flow (m3/h): 2239
Max pressure (Pa): 272
Working point: 2225 m3/h @ 269 Pa
Electric motor not included

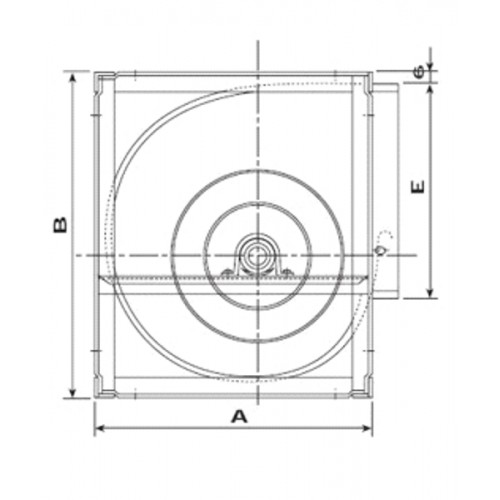

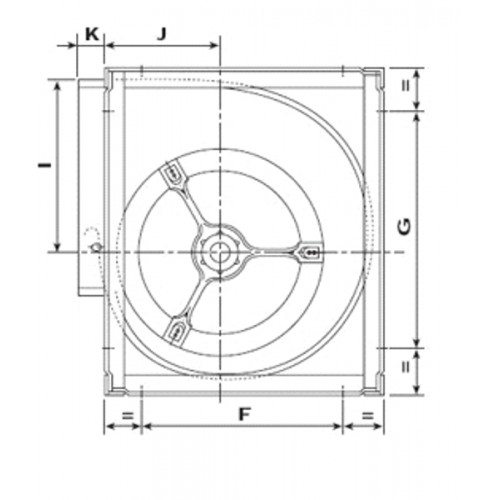

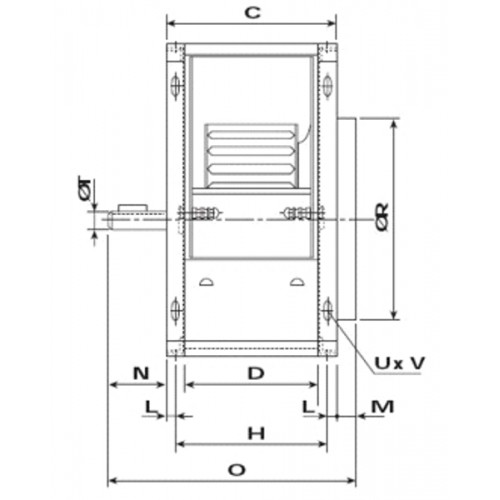

Dimensions (mm):
A = 393
B = 453
C = 248
D = 208
E = 289
F = 313
G = 373
H = 228
I = 247
J = 162
K = 38
L = 10
M = 30
N = 70
O = 348
R = 275
T = 20
Weight =11.00 kg
Single Inlet Centrifugal Fan CBS-10/6-0.75kW/4
- Cod Produs: CBS-10/6-0.75kW/4
- Disponibilitate: In Stoc
-
1,064.13ron
- Fara TVA: 879.45ron
