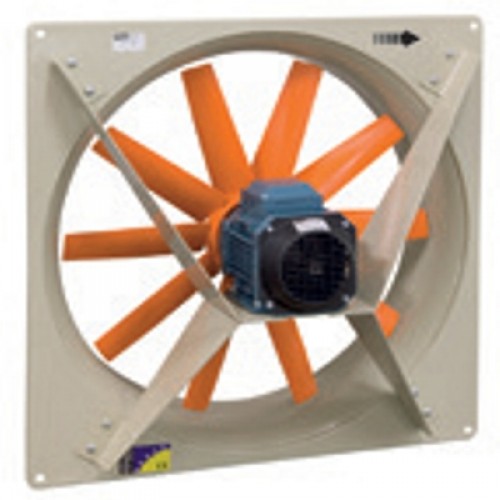

HC-90-4T/H IE3 Axial wall fan
Diameter (mm): 900
Motor power (W): 4000
Number of pole: 4P
Supply (V): 400
Speed (rpm): 1440
Max flow (m3/h): 43700
Max pressure (Pa): 490
Max admissible current (A): 8.12
Working point: 25000 m3/h @ 250 Pa
Weight (kg): 68

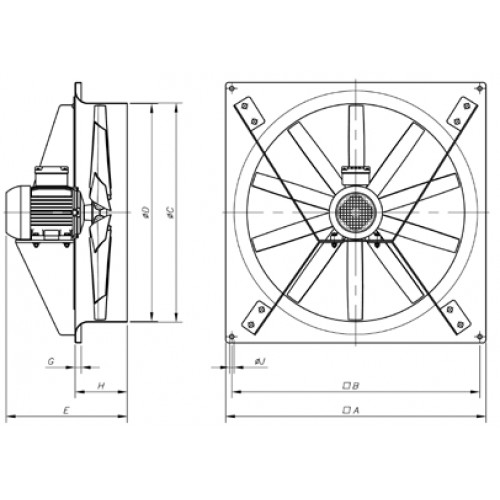

Dimensions (mm):
A= 1170
B= 1110
C= 918
D= 914
E= 511
G= 20
H= 210
J= 14.5
HC-90-4T/H IE3 Axial wall fan
- Cod Produs: HC-90-4T/H IE3
- Disponibilitate: In Stoc
-
7,165.15ron
- Fara TVA: 5,921.61ron
