CXRT/4-355-0.37kW smoke extraction F400 120

Single inlet direct driven centrifugal fans designed for smoke extraction in fire conditions and certified F400-120 (CE marked) and suitable for the continuous extraction of air stream up to 120ºC

Motor power (W): 370

Number of pole: 4P

Supply (V): 230/400

Speed (rpm): 1395

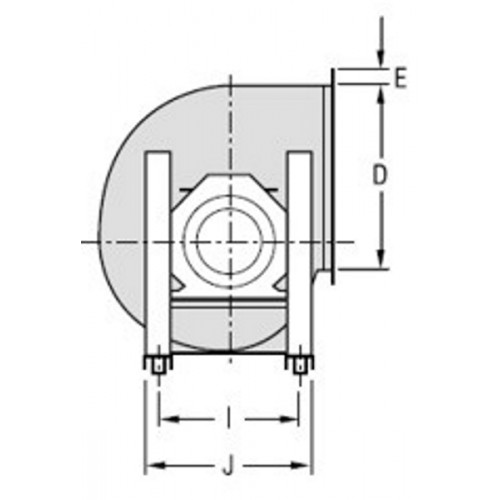

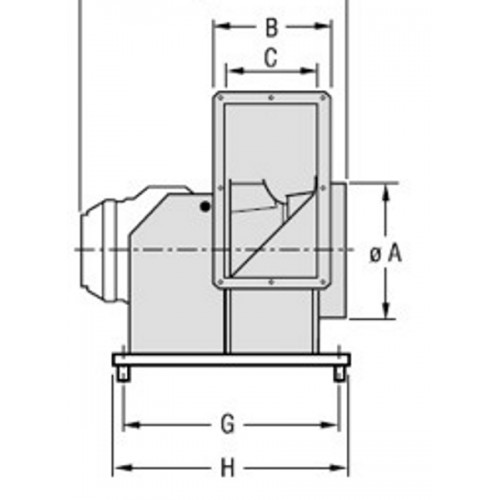

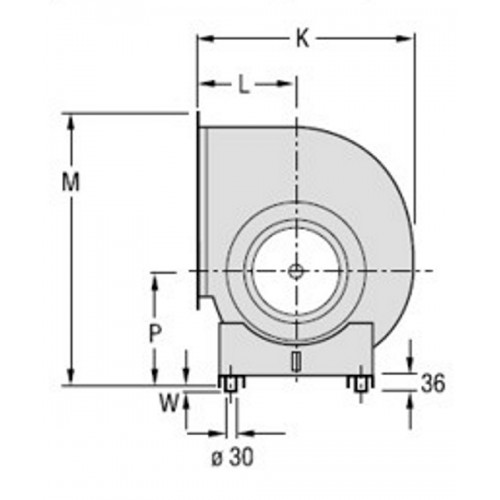

Dimensions (mm):

A= 342

C= 236

D= 453

K= 579

M= 714

P=  299

Diameter (mm): 355

Weight: 73.70 kg
