Nominal Diameter: 400 mm

Material: sheet steel housing

                 galvanized steel rotor

Air flow: 7200 m3/h
Speed: 1420 rpm

Maximum temperature.: 400deg.C/2h

Power: 2200 W
Consumption : A
Supply voltage: 400 V

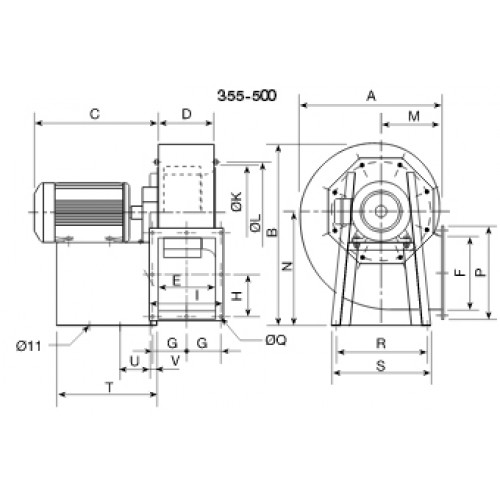

Building sizes: A=628  B=792  C=555  D=254  E=249  F=320  G=150  H=185   I=334  K=410  L=438  M=270  N=495  P=404  Q=11  R=402  S=438  T=420  U=2X133,5   V=30
Weight: 88 Kg

Class of protection: IP55, Class F

It can be ordered with more powerful engine
